■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 哺乳細胞，哺乳細胞雙雜交載體 |
質粒大小: | 5566bp |
原核抗性: | Amp |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG
|
3'測序引物: | PIRES.R：CACTGCATTCTAGTTGTGGT |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 雜交 |
片段類型: |
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
The pACT Vector is a high-copy plasmid in which the human cytomegalovirus (CMV) immediate early promoter drives expression of the herpes virus VP16activation domain (amino acids 411–456). A chimeric intron is located 5′ of the gene segment, and a multiple cloning region is located 3′ of the gene segment for insertion of cDNA clones of interest . The presence of this chimeric intron, in context with the CMV promoter and polyadenylation signal, can result in increased protein expression of cDNA genes linked to these elements. The stop codons and SV40 late polyadenylation region, demonstrated to be efficient for mRNA production , are at the 3′ end of the fusion gene. The fusion gene region is flanked by T7 and T3 RNA polymerase promoters for the synthesis of sense and antisense RNA products. The T7 promoter allows the construct to be translated using the TNT? T7 Quick Coupled Transcription/Translation System (Cat.). Also located on this vector is the neomycin phosphotransferase gene (from Tn5) driven by the SV40 early promoter and followed by a synthetic polyadenylation cassette. This gene confers resistance to the neomycin analog, G418 . The plasmid backbone contains an f1 origin of replication for the production of single-stranded DNA (ssDNA) and the β-lactamase (Ampr) gene for selection of the vector DNA in E. coli.

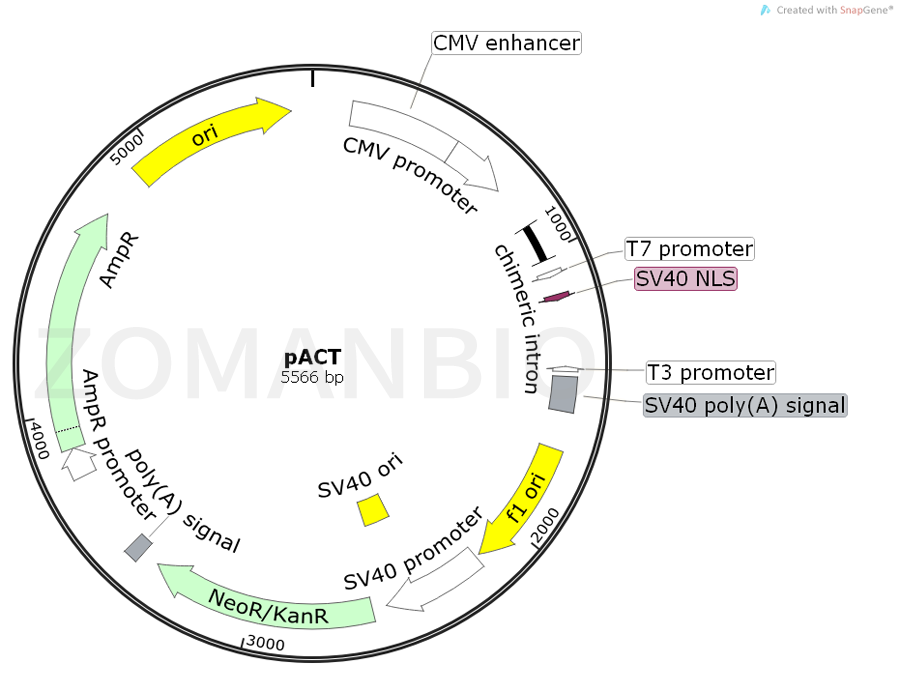

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK547pACT哺乳雙雜交質粒.txt
